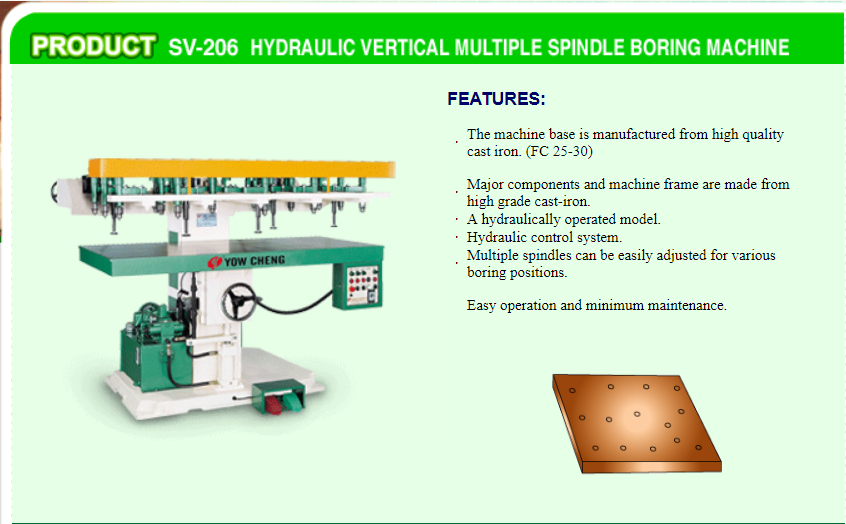

Máy khoan đứng nhiều đầu thủy lực

Liên hệ

Mã sản phẩm : SV-204 / 254 / 206 / 256 / 208 / 306 / 308

Giá : Liên hệ

Mô tả : Máy khoan đứng SV-204 / 254 / 206 / 256 / 208 / 306 / 308

Categories: Máy Đài Loan, Máy Khoan, Máy mới

Description

MODEL	SV-204	SV-254	SV-206	SV-256	SV-208	SV-306	SV-308
Spindle motor	2 HPx2	2 HPx2	2 HPx3	2 HPx3	2 HPx3	2 HPx3	2 HPx3
Spindle speed	50HZ-3700R.P.M.	50HZ-3700R.P.M.	50HZ-3700R.P.M.	50HZ-3700R.P.M.	50HZ-3700R.P.M.	50HZ-3700R.P.M.	50HZ-3700R.P.M.
Spindle speed	60HZ-4200R.P.M.	60HZ-4200R.P.M.	60HZ-4200R.P.M.	60HZ-4200R.P.M.	60HZ-4200R.P.M.	60HZ-4200R.P.M.	60HZ-4200R.P.M.
Number of spindle	10	10	16	16	16	16	16
Number of idler wheel	5	5	8	8	8	8	8
Hold down clamp	4	4	5	5	6	5	6
Table area	600×1220 mm	760×1220 mm	600×1830 mm	760×1830 mm	600×2400 mm	900×1830 mm	900×2400 mm
Hydraulic pump motor	2 HP	2 HP	2 HP	2 HP	2 HP	2 HP	2 HP
Max. table travel	100 mm	100 mm	100 mm	100 mm	100 mm	100 mm	100 mm
Max. boring depth	90 mm	90 mm	90 mm	90 mm	90 mm	90 mm	90 mm
Machine size(mm)	1350x1400x1630	1350x1560x1630	1950x1400x1630	1950x1560x1630	2550x1400x1630	1950x1710x1630	2700x1810x1800
Packing size(mm)	1500x1500x1800	1500x1660x1800	2100x1500x1800	2100x1660x1800	2700x1500x1800	2100x1810x1800	2700x1810x1800
Net weight	950 kg	1050 kg	1150 kg	1250 kg	1300 Kg	1300 Kg	1500 kg
Gross weight	1070 kg	1200 kg	1350 kg	1470 kg	1520 Kg	1520 Kg	1720 kg
